🏛 Architecture

← Home

NanoResearch is a 5-stage pipeline orchestrated around two persistent stores and one trainable planner. Each stage is a subclass of Stage that the Orchestrator invokes in sequence, pausing for user feedback at strategic points.

Pipeline overview

flowchart LR
  T[("📝 Topic")] --> O((Orchestrator))
  O -->|retrieve top-k| SB[(Skill Bank 𝒮)]
  O -->|retrieve top-k| MM[(Memory Module ℳ)]
  O --> I[Ideation]:::s1
  I --> P[Planning]:::s1
  P --> C[Coding + Execution]:::s2
  C --> A[Analysis]:::s2
  A --> W[Writing]:::s3
  W --> R[Review]:::s3
  R --> Paper[("📄 paper.pdf")]
  W -.->|distil| SB
  W -.->|distil| MM
  I -.->|narrations| U["💬 Chat"]
  P -.-> U
  C -.-> U
  A -.-> U
  W -.-> U
  U -.->|feedback ℱ| O
  classDef s1 fill:#1e3a8a,stroke:#3b82f6,color:#fff
  classDef s2 fill:#92400e,stroke:#f59e0b,color:#fff
  classDef s3 fill:#065f46,stroke:#10b981,color:#fff

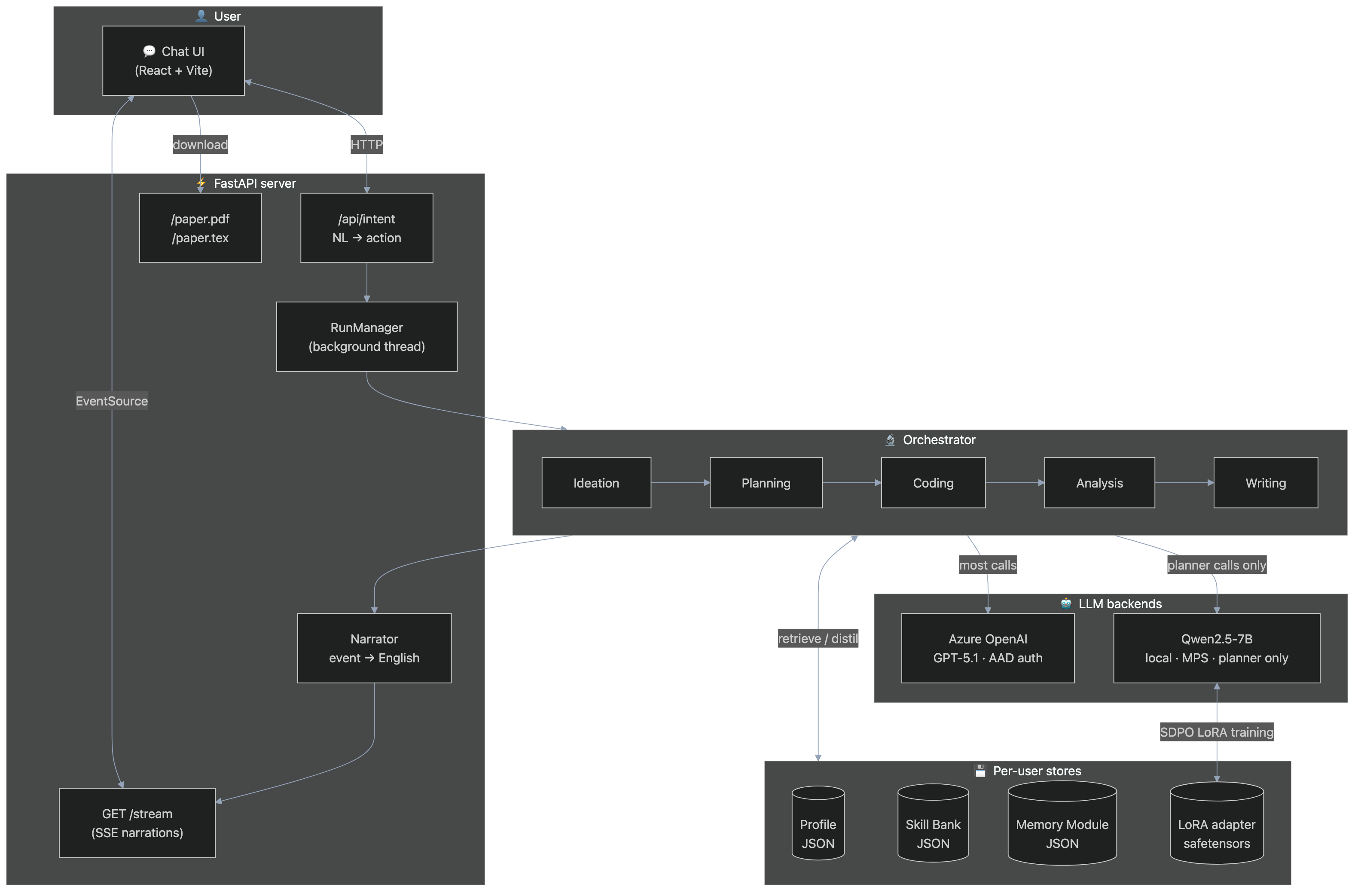

System layout

flowchart TB
  subgraph User["👤 User"]
    Chat["💬 Chat UI<br/>(React + Vite)"]
  end

  subgraph API["⚡ FastAPI server"]
    Intent["/api/intent<br/>NL → action"]
    RunMgr["RunManager<br/>(background thread)"]
    Narr["Narrator<br/>event → English"]
    SSE["GET /stream<br/>(SSE narrations)"]
    Files["/paper.pdf<br/>/paper.tex"]
  end

  subgraph Pipe["🔬 Orchestrator"]
    direction LR
    I[Ideation] --> P[Planning]
    P --> C[Coding]
    C --> An[Analysis]
    An --> W[Writing]
  end

  subgraph Stores["💾 Per-user stores"]
    Profile[(Profile<br/>JSON)]
    Skill[(Skill Bank<br/>JSON)]
    Mem[(Memory Module<br/>JSON)]
    LoRA[(LoRA adapter<br/>safetensors)]
  end

  subgraph Models["🤖 LLM backends"]
    Azure["Azure OpenAI<br/>GPT-5.1 · AAD auth"]
    Qwen["Qwen2.5-7B<br/>local · MPS · planner only"]
  end

  Chat <-->|HTTP| Intent
  Chat <-->|EventSource| SSE
  Chat -->|download| Files
  Intent --> RunMgr
  RunMgr --> Pipe
  Pipe --> Narr --> SSE
  Pipe <-->|retrieve / distil| Stores
  Pipe -->|9/10 of calls| Azure
  Pipe -->|planner calls only| Qwen
  Qwen <-->|SDPO LoRA training| LoRA

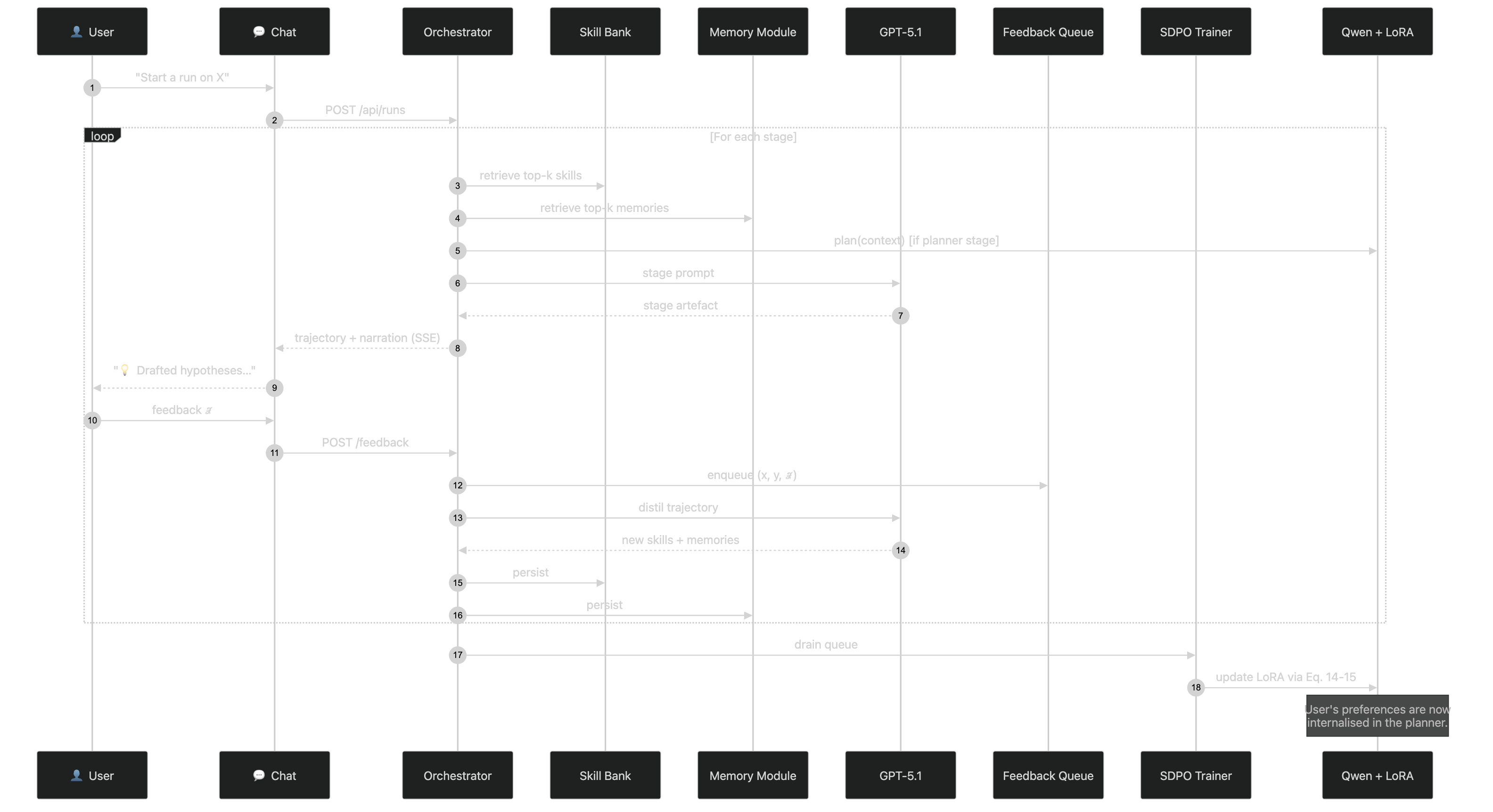

Co-evolution loop

sequenceDiagram
  autonumber
  participant U as 👤 User
  participant C as 💬 Chat
  participant O as Orchestrator
  participant SB as Skill Bank
  participant MM as Memory Module
  participant LLM as GPT-5.1
  participant FQ as Feedback Queue
  participant SDPO as SDPO Trainer
  participant Q as Qwen + LoRA

  U->>C: "Start a run on X"
  C->>O: POST /api/runs
  loop For each stage
    O->>SB: retrieve top-k skills
    O->>MM: retrieve top-k memories
    O->>Q: plan(context) [if planner stage]
    O->>LLM: stage prompt
    LLM-->>O: stage artefact
    O-->>C: trajectory + narration (SSE)
    C-->>U: "💡 Drafted hypotheses…"
    U->>C: feedback ℱ
    C->>O: POST /feedback
    O->>FQ: enqueue (x, y, ℱ)
    O->>LLM: distil trajectory
    LLM-->>O: new skills + memories
    O->>SB: persist
    O->>MM: persist
  end
  O->>SDPO: drain queue
  SDPO->>Q: update LoRA via Eq. 14-15
  Note over Q: User's preferences are now<br/>internalised in the planner.

Per-user filesystem layout

data/users/<user_id>/
├── profile.json
├── skills/
│   ├── skill-1a2b3c4d.json
│   └── …
├── memories/
│   ├── mem-9f8e7d6c.json
│   └── …
└── lora/
    └── <user_id>/
        ├── adapter_config.json
        └── adapter_model.safetensors

runs/
├── workspaces/proj-<id>/    # ← CodingStage writes here
│   ├── run.py
│   ├── analysis.py
│   └── tables/, figures/
├── papers/proj-<id>/        # ← WritingStage writes here
│   ├── paper.tex
│   └── paper.pdf            # if pdflatex/tectonic installed
└── <run-id>/
    └── events.jsonl         # full audit trail (one line per event)

What runs where

Stage	Inputs	Output artefact	LLM role
Ideation	Topic, profile, skills, memories	IdeationArtefacts (h*)	IDEATION
Planning	h*, profile	Blueprint (peer-reviewed)	PLANNING + REVIEW
Coding	Blueprint	GeneratedProject + ExecutionResult	CODING + DEBUG
Analysis	ExecutionResult	AnalysisReport	ANALYSIS
Writing	Blueprint + Analysis	PaperDraft + CompiledPaper	WRITING + REVIEW

Key design decisions

• Single-process backend, threaded runs. Simple to reason about; one RunManager owns every run via background threads pushing onto an asyncio.Queue consumed by the SSE handler.
• JSON-per-file stores. Skill Bank and Memory Module are one-file-per-entry under data/users/<id>/. Transparent to inspect, trivial to diff in git.
• AAD-only Azure auth. No keys in .env. Uses DefaultAzureCredential → get_bearer_token_provider for the openai.AzureOpenAI client.
• Field-agnostic prompts. Every stage’s system prompt explicitly invites the LLM to adapt to the user’s field (biology, social science, math, …).
• Network-free Stage II. Generated experiment projects must run with the Python stdlib + numpy and may not call out to the internet — we simulate small synthetic data and let the analysis surface the methodological finding.
